Truck

The load capacity of different vehicles ranges from 3 tons to 20 tons. In addition, the length, width, height, left/right rudder, color, appearance, functional division and material of the vehicles can be adjusted according to your requirements.

Description

The vehicles exported by Guoji Supply Chain mainly include dump trucks, stake trucks, box trucks, mixers, sprinklers, sewage trucks and other vehicles, which have been exported to Sierra Leone, Uganda, Mozambique, the Philippines, India, Pakistan and other countries. All the vehicles can be customized according to different requirements of customers. The load capacity of different vehicles ranges from 3 tons to 20 tons. In addition, the length, width, height, left/right rudder, color, appearance, functional division and material of the vehicles can be adjusted according to your requirements. We constantly improve the technology and upgrade our products to provide customers with high-quality and efficient transport vehicles.

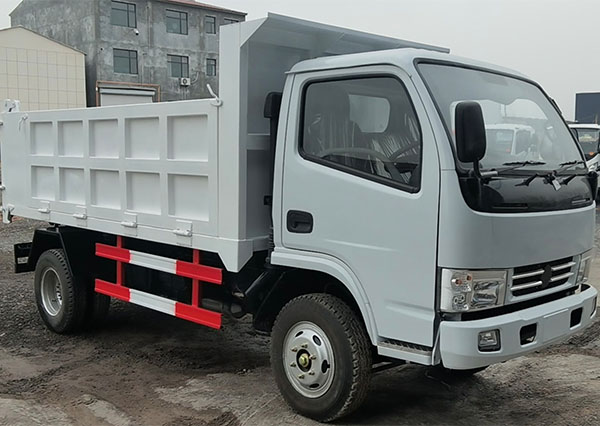

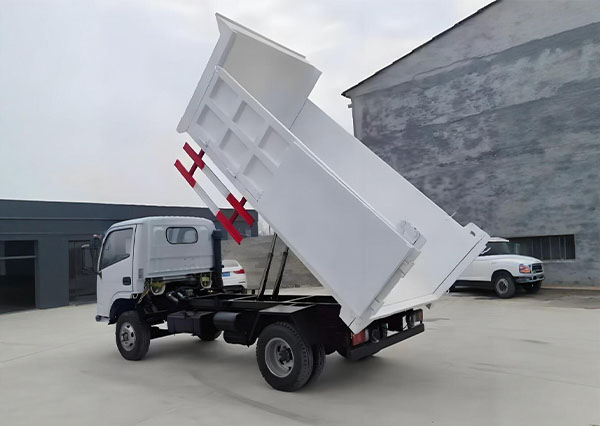

DUMP TRUCK


Dump trucks are main used for transporting urban muck, construction and mineral materials, which can greatly save unloading time and labor, improve production efficiency and reduce transportation costs.

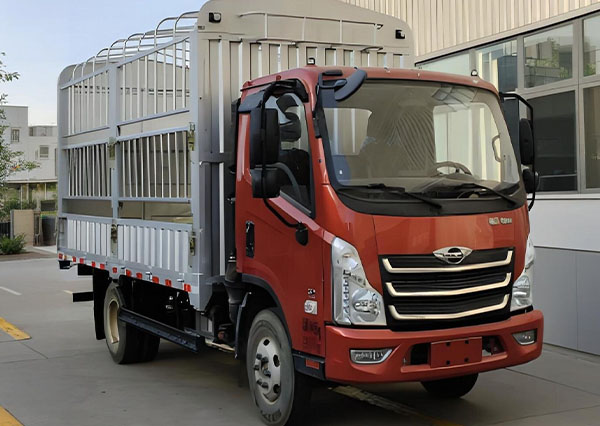

STAKE TRUCK


According to the customers’ requirements, stake trucks can be customized into different transport vehicles for livestock, fruits, vegetables, nut, grains and so on.

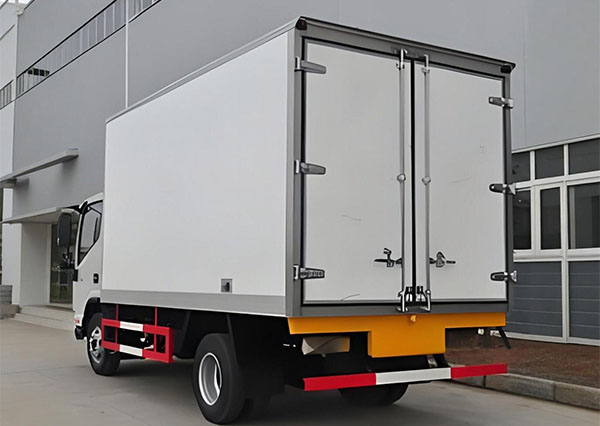

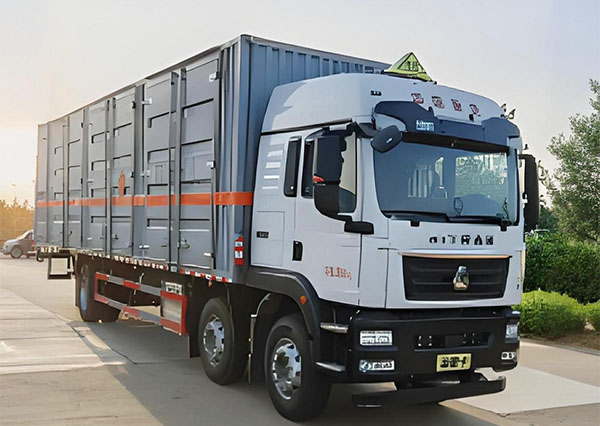

BOX TRUCK


Box trucks are can be used to transport all kinds of goods in an enclosed environment, which is safer and better than ordinary trucks, and the goods will not wet when it rains.

Parameter

Main Technical Parameters-Available for Customization
Gross Weight (Kg)14520Truck Body Volume (m3)10
Gross Vehicle Weight Rating (Kg)10000Overall Dimension (mm)5600*2250*2500
Curb Weight (Kg)4520Truck Body Dimension (mm)3600*2100*1300
Seating Capacity(人/Person)3Maximum Load Capacity of Bolster (Kg)
Approach/Departure Angles(°)21/18Front /Rear Suspension (mm)1130/1420,1317/1420
Number of Axles4350/7645Maximum speed (Km/h)103
Chassis Technical Parameters
Chassis ModelEQ1125SJ8CDCChassis NameTruck Chassis
Brand NameDongfeng BrandManufacturerDongfeng Automobile Co., Ltd.
Number of Axles2Number of Tires6
Wheelbase (mm)3800 Tire Specifications8.25R20
Number of Leaf Springs8/10+7,12/12+9Front Wheel Track (mm)1745,1802,1820,1842,1765,1890
Fuel TypeDieselRear Wheel Track (mm)1630,1650,1800,1720
Emission StandardGB17691-2015 National Standard III
Engine ModelCY4102BZQDisplacement (ml)2499
Engine ManufacturerDongfeng Chaoyang Diesel Co., Ltd.Power (Kw)88 (120 Horsepower)

Service commitment

Product warranty period

We provide a certain period of warranty service for the product.The specific warranty period and terms will be determined according to the product type and customer agreement.

Quick response

We promise that after receiving the service request, we will respond as soon as possible and arrange for on-site service by service personnel.

technical support

We provide round-the-clock technical support to help you solve technical problems encountered during the use of the equipment.
